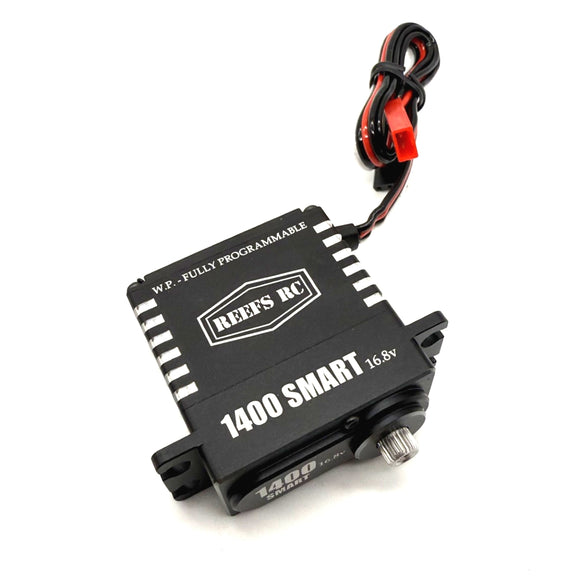

1400 Smart 16.8V Brushless Servo
SEHREEFS246Features:
- High Torque High Speed Brushless Servo or Winch
- Comes as Servo out of the Box, can be changed to winch with the REEFS LINK V2 (Sold separately) and Software.
- Built In preprogrammed winch controller
- Submarine Waterproof: 7 Point Seals w/ Heat Sink
- Military Grade Construction
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- 4 Pole Brushless Motor
- Internal Steel Gears / All CNC Aluminum Casing
Specifications:
- 4 Pole Brushless Motor / Voltage 10V - 16.8V
- Bearing Type 4 Ball Bearings / Weight 3.19oz / 90gm
- Dimensions 1.57 x .79 x 1.5 (LWH) / 40x20x42mm
- Torque 1140oz @ 12.6v/ 1223oz @14.4v / 1400oz @16.8v
- 82KG@12.6v / 88KG@14.4v / 101KG@16.8v
- Speed.15sec @ 12.6v / .13sec @ 14.4v / .11sec @ 16.8v
- Spline 25T
- Unload Current:
- 320mA@10.0V
- 380mA@11.1V
- 480mA@12.6V
- 530mA@14.4V
- 630mA@16.8V
- Load Current:
- 3200mA@10.0V
- 3600mA@11.1V
- 4200mA@12.6V
- 4400mA@14.4V
- 4800mA@16.8V
