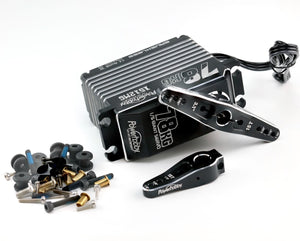

1512MG 1/5 Alumminum Waterproof High Speed
PHB1512MG
2S Version 1/5 scale servo. This servo combines a long-life brushless motor with a monster torque design to take the driving experience of large model enthusiasts to a new level. 1512MG servo is ideal for 1/5 Monster Truck or Buggy. Whether you are traversing the jungle or climbing over sand dunes, 5 ball bearings and strengthened gear structure improve the life of the servo. IP67 waterproof so you can play with your model in a humid environment or rainy day. This 1512MG servo is suitable for most 1/5 scale models, which require a 2S LiPo battery. Ultralight design with heat sink machining.
Specs :
Stall Torque
48.0 kg-cm (667 oz-in) @ 4.8V
58.0 kg-cm (806 oz-in) @ 6.0V
66.0 kg-cm (917 oz-in) @ 7.4V
78.0 kg-cm (1084 oz-in) @ 8.4V
Operating Speed
0.126 sec/60' @ 4.8V
0.110 sec/60' @ 6.0V
0.095 sec/60' @ 7.4V
0.082 sec/60' @ 8.4V
Dimensions L x W x H (mm): 65.78 x 29.97 x 58.92
Heat Sink Aluminum Case Extremely Strong Steel Gears Super Reliable Five Ball Bearing 2S Lipo High Voltage Compatible 15T Aluminum Servo Horns Magnetic Sensor Waterproof IP67
Specs :
Stall Torque
48.0 kg-cm (667 oz-in) @ 4.8V
58.0 kg-cm (806 oz-in) @ 6.0V
66.0 kg-cm (917 oz-in) @ 7.4V
78.0 kg-cm (1084 oz-in) @ 8.4V
Operating Speed
0.126 sec/60' @ 4.8V
0.110 sec/60' @ 6.0V
0.095 sec/60' @ 7.4V
0.082 sec/60' @ 8.4V
Dimensions L x W x H (mm): 65.78 x 29.97 x 58.92
Features:
